Preparing Your AWS RDS PostgreSQL Database for Logical Replication to Linode Managed Database

This guide explains how to prepare an AWS RDS PostgreSQL database for logical replication to a Linode Managed Database. If you’re following the “Logical Replication to a Linode Managed PostgreSQL Database” guide, use this document to complete the AWS-side preparation before returning to create the subscription on Linode.

Following the steps in this guide will help you to:

1. Configure your RDS instance to support logical replication.
2. Ensure secure network access from Linode.
3. Create a dedicated replication user.
4. Set up a publication for the tables you wish to replicate.

After completing these steps, return to the main replication guide to configure the subscriber and finalize the setup.

Prerequisites

You will need administrative access to your AWS account, including permissions to modify RDS instance settings and security groups. You’ll also need the AWS CLI installed and configured—with a user or role that has the necessary privileges.

In addition, you should have the IP address or CIDR range for the host machine of your Linode Managed Database so you can configure inbound access on the RDS instance.

Modify the RDS Parameter Group

To support logical replication, you must configure your RDS instance with the correct parameter settings. Follow these steps:

Step 1: Locate Your RDS Instance’s Parameter Group

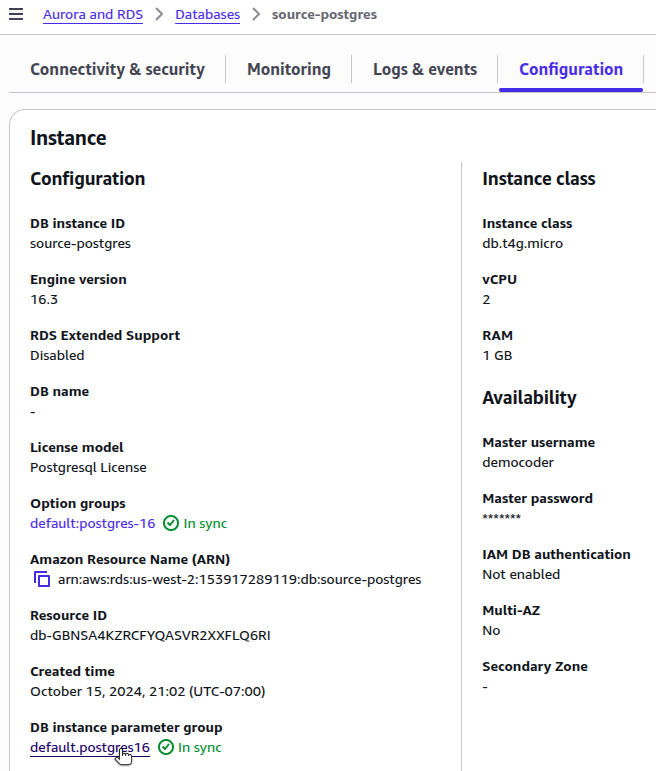

In the AWS Management Console, go to RDS > Databases. Select your instance and look under the Configuration tab to find the associated DB instance parameter group (not to be confused with the “option group”). Click on the parameter group.

When using the aws CLI, obtain the name of the parameter group with the following command:

aws rds describe-db-instances \
  --db-instance-identifier DB_INSTANCE_ID \
  --region AWS-REGION \
  --query "DBInstances[0].DBParameterGroups[*].DBParameterGroupName"

[
  "default.postgres16"
]

Step 2: Review Current Parameter Settings

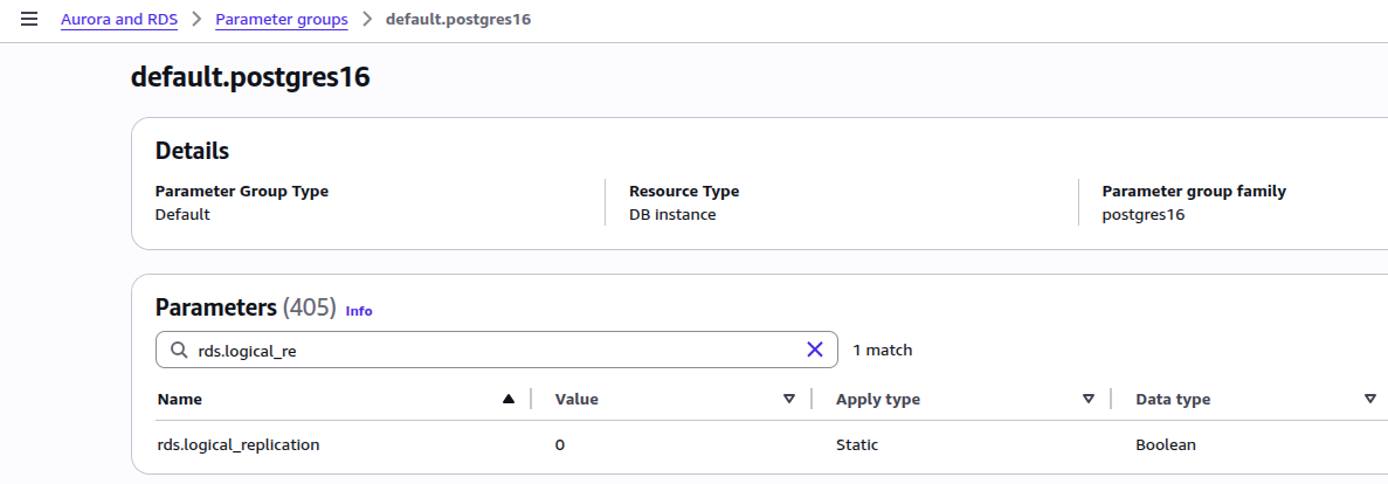

In the list of parameters, filter the parameters to find the values for rds.logical_replication, max_replication_slots, and max_wal_senders. For example:

The values should be:

• rds.logical_replication: 1 (which will subsequently set the PostgreSQL setting of wal_level to logical).
• max_replication_slots: Greater than or equal to 1
• max_wal_senders: Greater than or equal to max_replication_slots, depending on expected replication concurrency

To determine the parameter values for a given parameter group, use the describe-db-parameters subcommand. For example:

aws rds describe-db-parameters \
  --region AWS_REGION \
  --db-parameter-group-name PARAMETER_GROUP_NAME \
  --query "Parameters[?ParameterName=='rds.logical_replication' || ParameterName=='max_replication_slots' || ParameterName=='max_wal_senders'].[ParameterName, ParameterValue, ApplyType, Description]"

[
  [
    "max_replication_slots",
    "20",
    "static",
    "Sets the maximum number of replication slots that the server can support."
  ],
  [
    "max_wal_senders",
    "35",
    "static",
    "Sets the maximum number of simultaneously running WAL sender processes."
  ],
  [
    "rds.logical_replication",
    "0",
    "static",
    "Enables logical decoding."
  ]
]

If these are already set correctly, you can skip ahead in this guide. Otherwise, you will need to modify the parameter group.

Step 3: Determine If the Parameter Group Is Modifiable

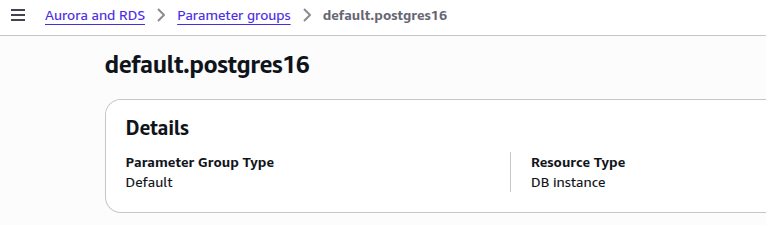

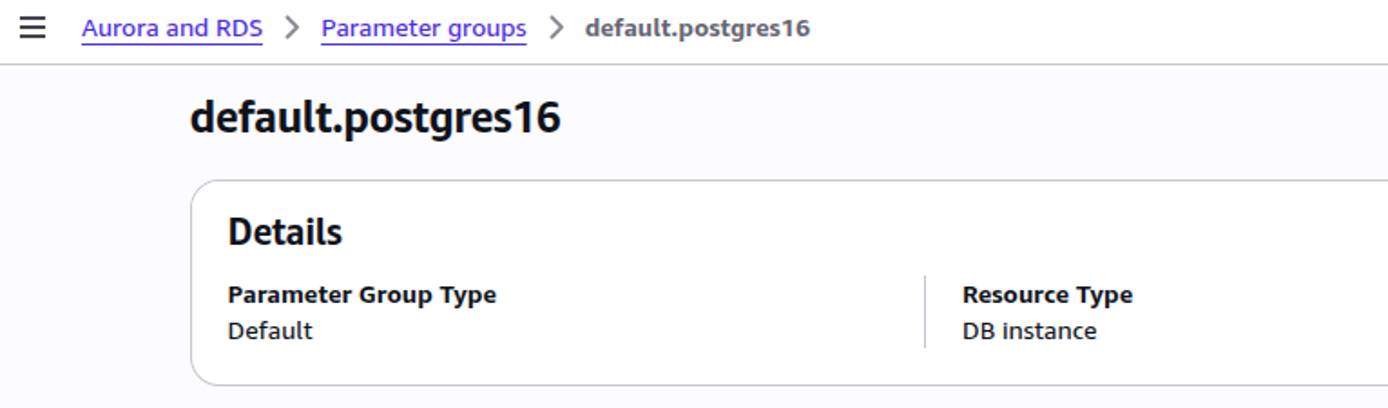

Your RDS instance may be using the default parameter group. You can determine this under the Details for this parameter group to see if it is “Default” or “Custom”.

The default parameter groups cannot be modified. If your RDS instance is using the default parameter group, you will need to create a custom parameter group to make the necessary modifications.

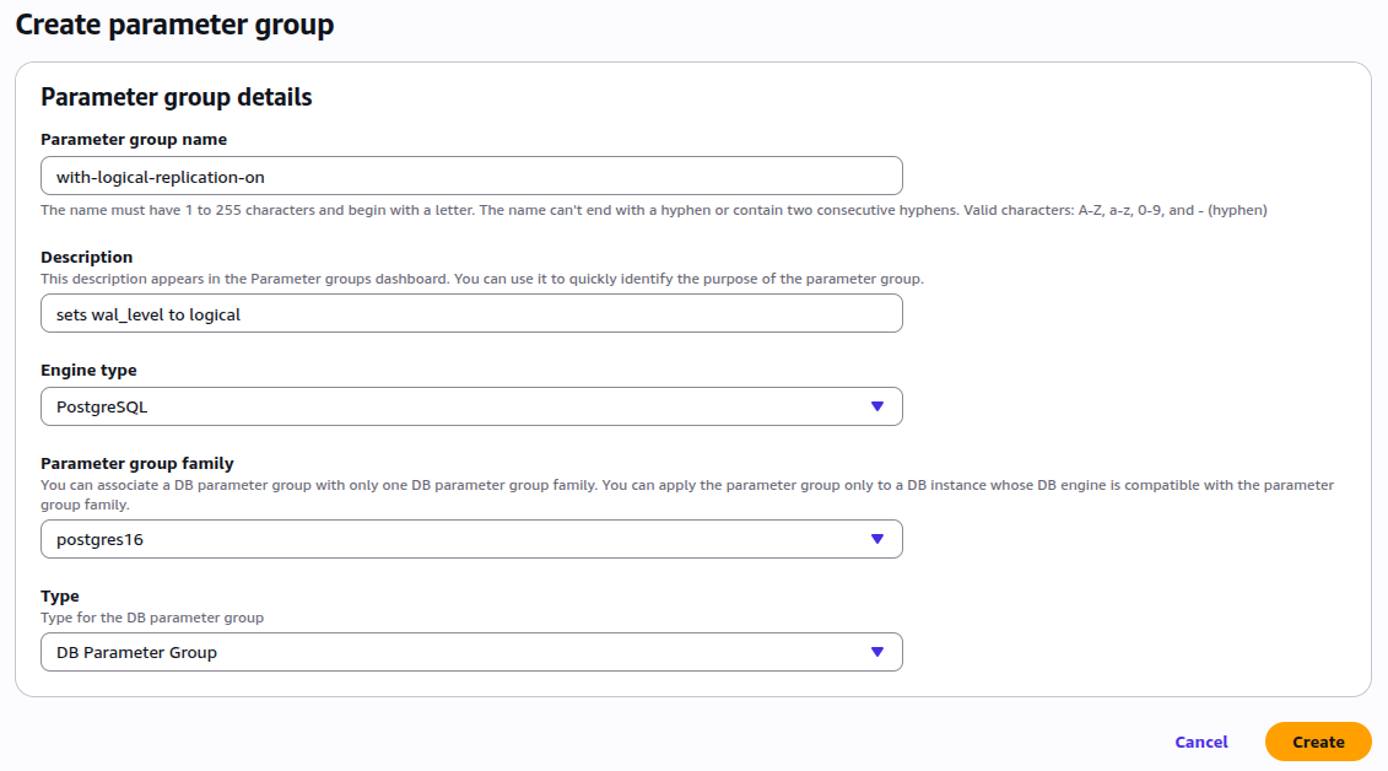

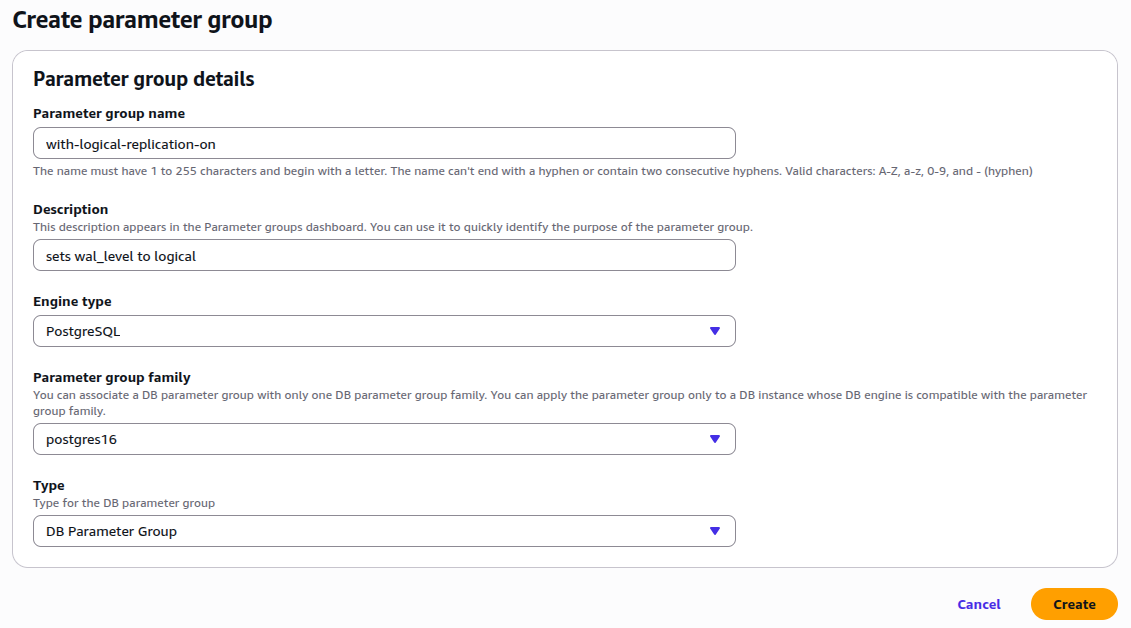

Create a new custom parameter group by navigating to Parameter groups. Click Create parameter group. Specify a name and description for the parameter group. Choose “PostgreSQL” for the engine type, then choose the appropriate parameter group family based on the version of PostgreSQL used by your RDS instance. Click Create.

This creates a parameter group that begins with values that match the default parameter group.

You can also create the parameter group with the CLI. For example:

aws rds create-db-parameter-group \
  --region AWS_REGION \
  --db-parameter-group-name with-logical-replication-on \
  --db-parameter-group-family postgres16 \
  --description "sets wal_level to logical"

{
  "DBParameterGroup": {
    "DBParameterGroupName": "with-logical-replication-on",
    "DBParameterGroupFamily": "postgres16",
    "Description": "sets wal_level to logical",
    ...
  }
}

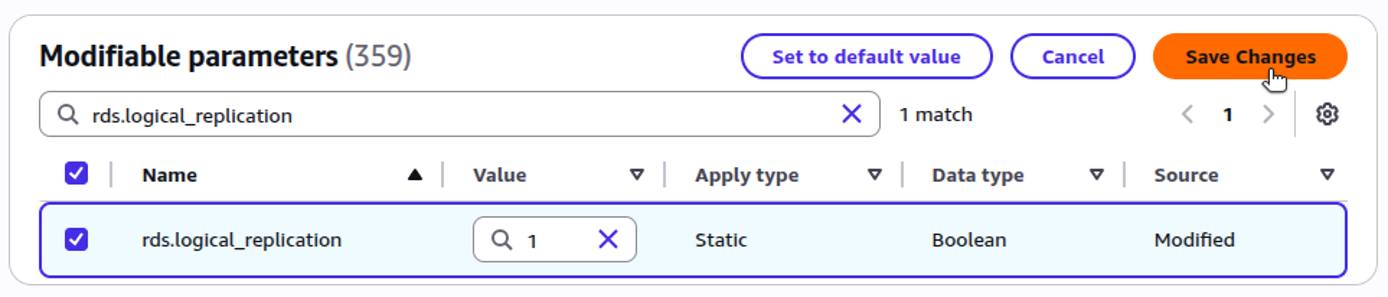

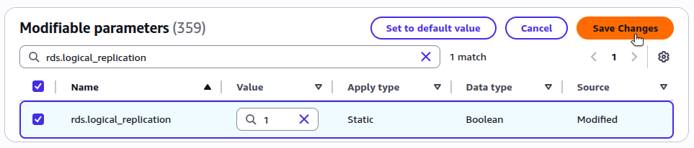

On the details page for the newly created parameter group, click Edit. Find each of the three parameters that may need modification. Set the values as required. Click Save Changes.

With the CLI, you can set parameter values as follows:

aws rds modify-db-parameter-group \
  --region AWS_REGION \
  --db-parameter-group-name with-logical-replication-on \
  --parameters \
"ParameterName=rds.logical_replication,ParameterValue=1,ApplyMethod=pending-reboot" \
"ParameterName=max_replication_slots,ParameterValue=10,ApplyMethod=pending-reboot" \
"ParameterName=max_wal_senders,ParameterValue=10,ApplyMethod=pending-reboot"

Step 4: Associate the Parameter Group with Your RDS Instance

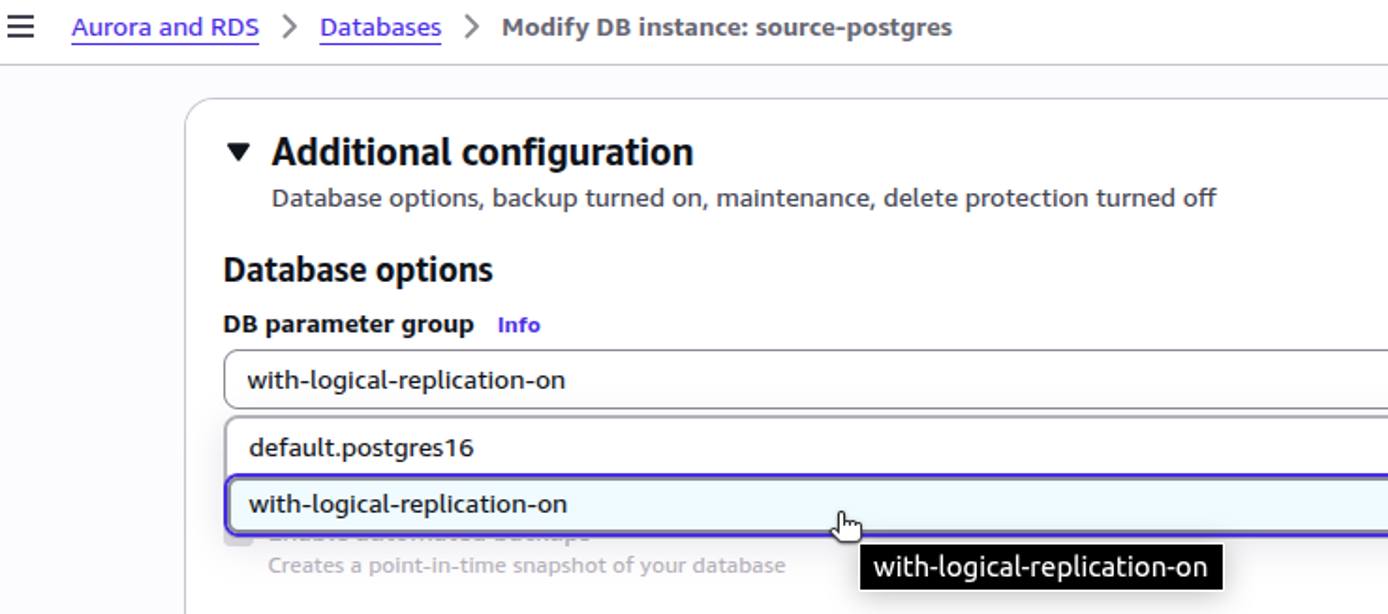

Navigate to Databases, select your instance, and choose Modify. Under Additional configuration, set the DB parameter group to your modified (or newly created) parameter group.

Click Continue. For the modification schedule, select Apply immediately, then click Modify DB instance.

With the AWS CLI, run the following command to associate your RDS instance with the parameter group:

aws rds modify-db-instance \
  --region AWS_REGION \
  --db-instance-identifier DB-INSTANCE-ID \
  --db-parameter-group-name PARAMETER_GROUP_NAME \
  --apply-immediately

Step 5: Reboot the RDS Instance

After applying the parameter group, reboot the database to apply the changes. For example

aws rds reboot-db-instance \
  --region AWS_REGION \
  --db-instance-identifier DB_INSTANCE_ID

Configure Network Access

Before the Linode Managed Database can connect to your RDS instance, you must ensure that the RDS instance allows network access from the Linode database host.

Under Connectivity & security for your database instance, find and click on the security group associated with the instance.

To get the name of the security group with the AWS CLI, run the following command:

aws rds describe-db-instances \
  --db-instance-identifier DB_INSTANCE_ID \
  --region AWS_REGION \
  --query "DBInstances[0].{SecurityGroups:VpcSecurityGroups[*].VpcSecurityGroupId}"

{
    "SecurityGroups": [
        "sg-78944f70"
    ]
}

Examine the inbound rules for the security group. With the CLI, use the following command:

aws ec2 describe-security-groups \
  --group-ids sg-78944f70 \
  --region AWS_REGION \
  --query "SecurityGroups[0].IpPermissions"

[
  {
    "FromPort": 5432,
    "IpProtocol": "tcp",
    "IpRanges": [
      {
        "CidrIp": "..."
      },
      {
        "CidrIp": "..."
      }
    ],
    "Ipv6Ranges": [],
    "PrefixListIds": [],
    "ToPort": 5432,
    "UserIdGroupPairs": []
  },
  ...
]

If an existing rule already allows access from 0.0.0.0/0, then your Linode Managed Database likely already has access. However, it’s considered a security best practice to scope access more narrowly when possible.

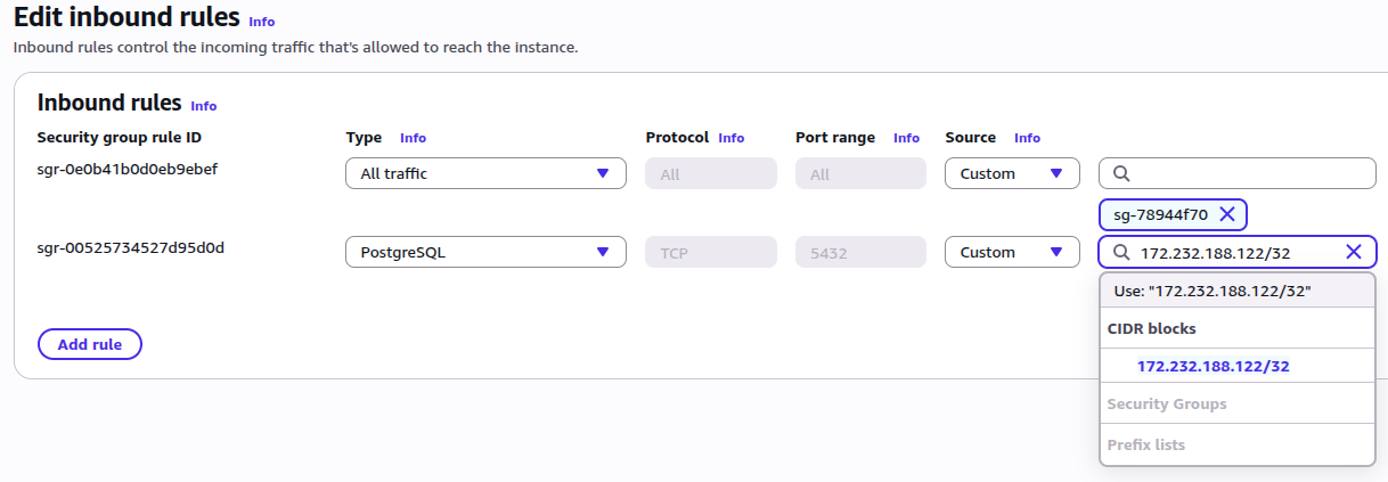

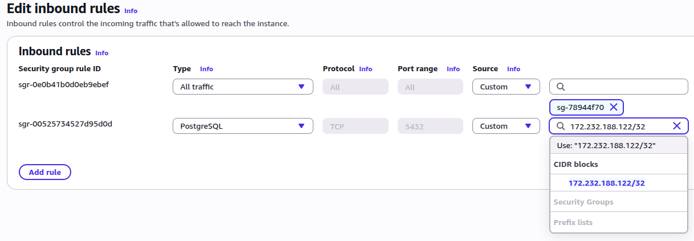

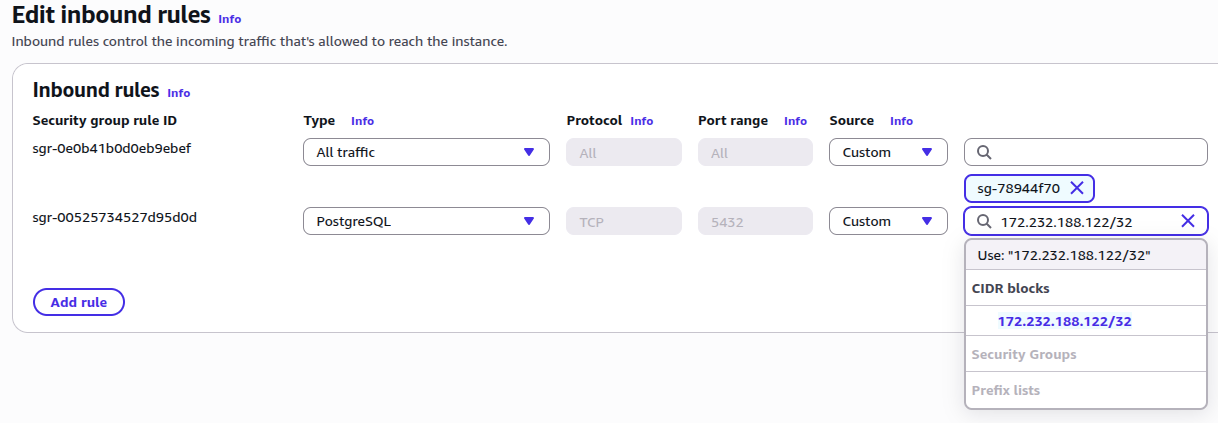

If no rule exists that would allow access by our Linode Managed Database, click Edit inbound rules. Then, click Add rule. Set the rule type to “PostgreSQL” (TCP protocol to port 5432). For source, add the CIDR block of your Linode Managed Database host.

Click Save rules.

Using the AWS CLI, you would run the following command to add the inbound rule:

aws ec2 authorize-security-group-ingress \
  --group-id sg-78944f70 \
  --region AWS_REGION \
  --protocol tcp \
  --port 5432 \
  --cidr 172.232.188.122/32

With network access configured, your Linode Managed Database should be able to reach the RDS instance during the subscription creation step in the main guide.

Create a Replication User

While logical replication can technically be performed using the master user, it’s strongly recommended to create a dedicated user with the REPLICATION privilege and appropriate access to the tables being published. Follow these steps to create this limited-privileges user on your RDS instance.

Connect to your RDS PostgreSQL instance using the psql client. The default database name for RDS PostgreSQL instances is postgres.

psql -h RDS_ENDPOINT -p RDS_PORT -U MASTER_USERNAME -d postgres

Create a user, then grant it replication privileges. In RDS, this means attaching the rds_replication role. Then, grant SELECT privileges for the tables you plan to replicate. For example:

CREATE ROLE linode_replicator LOGIN PASSWORD 'thisismyreplicatorpassword';
GRANT rds_replication TO linode_replicator;
GRANT SELECT ON customers, products, orders TO linode_replicator;

CREATE ROLE
GRANT ROLE
GRANT

Replace the table names with your actual schema as needed. For simplicity, this example assumes a public schema and three tables typically found in an ecommerce database. Alternatively, you can grant privileges on all tables with the following command:

GRANT SELECT ON ALL TABLES in SCHEMA public to linode_replicator;

The newly created user (for example: linode_replicator) will be referenced by the Linode Managed Database when creating the subscription.

Create a Publication

A publication defines which tables and changes (inserts, updates, deletes) should be streamed to the subscriber. You’ll need at least one publication for logical replication.

While still connected via the psql client, create a publication for specific tables. For example:

CREATE PUBLICATION my_publication FOR TABLE customers, products, orders;

Alternatively, you can create a publication for all current and future tables in the database:

CREATE PUBLICATION my_publication FOR ALL TABLES;

The subscriber must have matching tables with compatible schemas for replication to succeed.

To view any created publications, run the following command:

SELECT * FROM pg_publication_tables;

-[ RECORD 1 ]-----------------------------------------------
pubname    | my_publication
schemaname | public
tablename  | customers
attnames   | {id,name,email,created_at}
rowfilter  |
-[ RECORD 2 ]-----------------------------------------------
pubname    | my_publication
schemaname | public
tablename  | products
attnames   | {id,name,price,in_stock}
rowfilter  |
-[ RECORD 3 ]-----------------------------------------------
pubname    | my_publication
schemaname | public
tablename  | orders
attnames   | {id,customer_id,product_id,quantity,order_date}
rowfilter  |

Your source database is now ready for logical replication. Return to the main guide to configure the Linode Managed Database and create the subscription.

Additional Resources

The resources below are provided to help you become familiar with logical replication with a PostgreSQL database when working with AWS RDS.

• AWS:
• Setting up PostgreSQL logical replication
• Parameter groups for Amazon RDS
• CLI documentation for AWS RDS
• PostgreSQL:
• Logical replication
• CREATE SUBSCRIPTION
